Fibre Jointing

Fibre Jointing Washers

ASG offers a wide range of non-metallic washers, thanks to a broad network of suppliers and material manufacturers, some of which are needed for specific industries or applications. One such type of products on offer from our vast catalogue are fibre jointing washers, which consists of a varied choice of material types each with its own unique properties to meet particular application demands. The quality of the cut and finish of the washer is just as important as the material used, therefore we ensure our in-house manufacturing team follow our customer’s drawings or samples to create an exact match. From a small sample batch to multi-thousand runs, we have a machine to quickly and accurately produce perfectly formed gaskets in a range of sizes, these include a number of presses and CNC machines.



What is a Fibre Washer?

Washers are a flattened ‘ring’ of material manufactured using Outer Diameter (OD), Internal Diameter (ID) and thickness measurements. Washers are placed between 2 surfaces to reduce friction, prevent unsteadiness, to create a smooth, level surface for nuts/bolts to rest on (or allow for a better fit) and can be used as a seal. Most people will instantly think of sponge or rubber when looking for a compressible material for sealing and washer products, however in many cases,  a ‘fibre’ based material could also be an option.  Fibre jointing washer material is made up of fibre strands held together with a resin, different types of fibre can be used to determine the gaskets compressibility, temperature range and strength.



Why use Fibre Jointing Washers?

With a raised awareness of environmental and safety issues, using the right types of seals has become crucial for many industries to ensure harmful chemicals and emissions are kept contained. Fibre jointing materials are manufactured in a variety of types, using different fibre and binder compositions in order to meet an array of temperature, compression, insulating and chemical resistance properties. Fibre jointing washers generally have excellent resistance to chemicals and oils together with a high-temperature range and tensile strength, making them suitable for many industries.



Grades

When choosing Advanced Seals & Gaskets Ltd for your washer needs, you are sure to be offered a number of material options, thanks to our network of material manufacturers and suppliers, our most popular fibre jointing materials include:

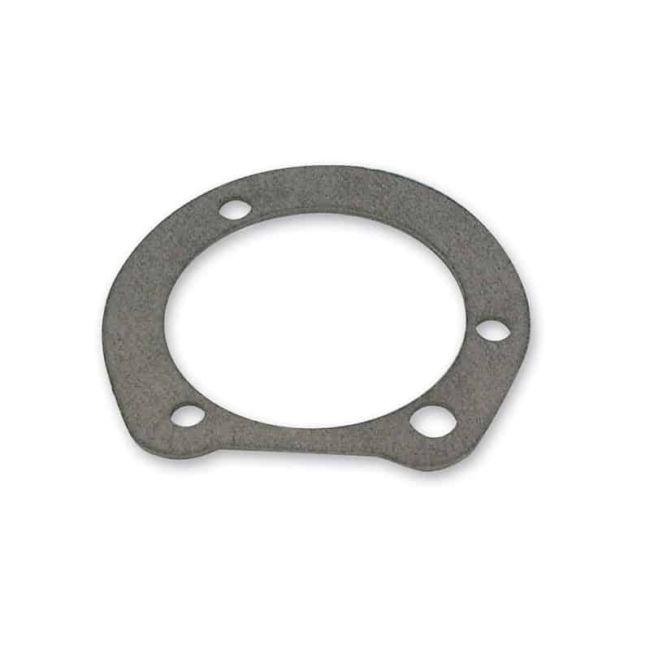

Betaflex is a cellulose-based fibre material, which is made using a nitrile binder giving it excellent tensile strength,  low compressibility, good elastic recovery and erosion resistance. Betaflex washers are used widely in the industrial and automotive sectors due to their resistance to oils. petrol, diesel and even antifreeze.

Ceramic Fibre material is constructed using ceramic fibres and an organic binder, designed for extreme temperature applications reaching up to 1250℃. Ceramic fibre washers have excellent strength and flexibility, excellent insulating properties and thermal resistance.

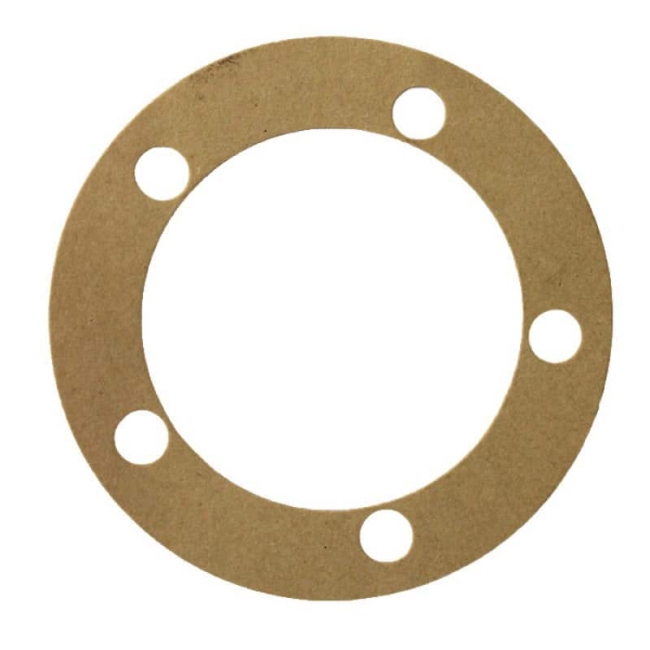

Gasket Paper washers have a high resistance to petrol, oil and water, therefore often utilised within automotive applications (within fuel/oil pumps and filters). This material is not recommended for industrial use due to its lack of resistance to chemicals and heat.

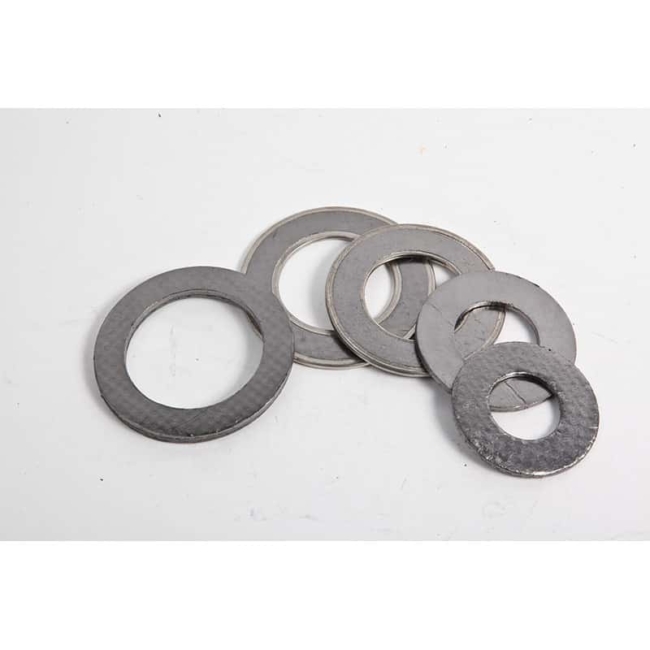

Graphite foil is available in a number of grades and is an excellent sealing material suitable for high temperature and high-pressure liquid, steam, gas and chemical transfers. Graphite foil washers can be used where there is exposure to oil, petrol and gas – even nuclear or power generation applications.

Millboard washers are made using a material composed of ceramic fibres, clay, inert fillers and binders. Although these washers can not be used with direct flame, they can handle temperatures of up to 1037℃.

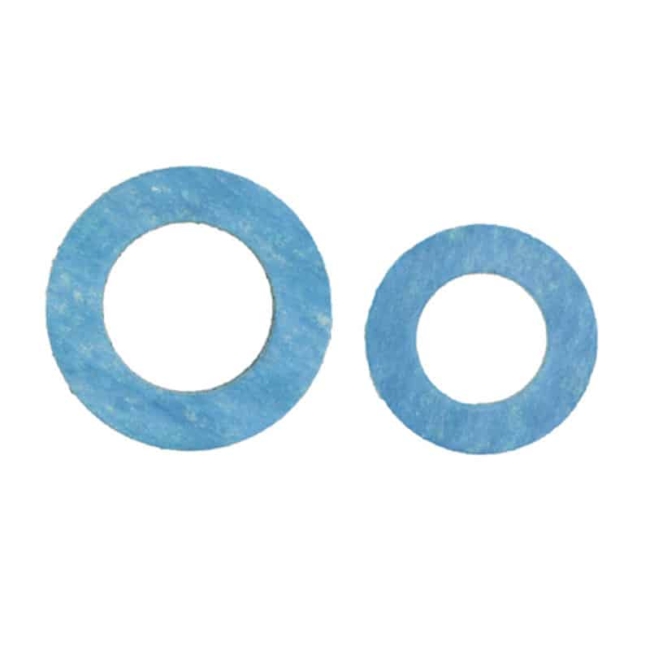

Non-asbestos fibre – Non-asbestos fibre has been designed to not only replace the original ‘Asbestos’ material but also to be a more superior product with countless desirable properties as the material is manufactured in various formulations, each giving a combination of properties suited for different applications.  Non-asbestos fibre washers can be blended with nitrile, thus giving fuel and oil resistance properties, with EPDM to create a potable water safe product or with PTFE for chemical resistance, they can also be supplied with a graphite coating to give steam and non-stick resistance properties.

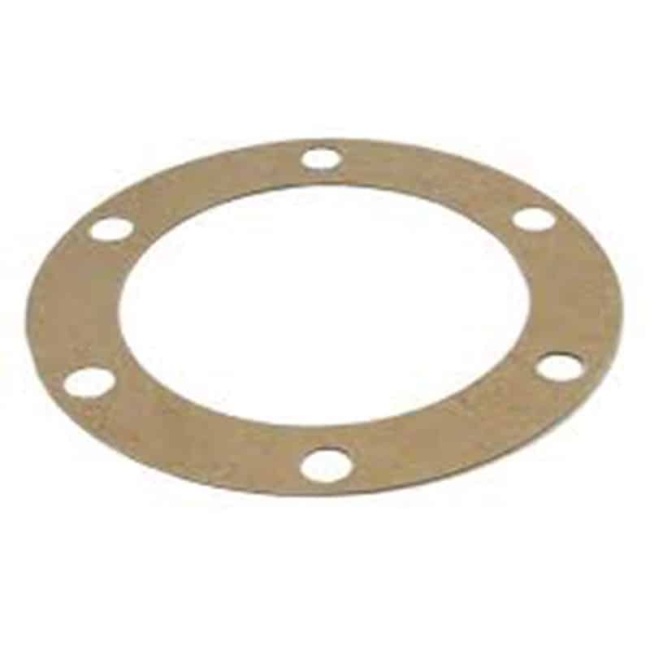

Presspahn washers are manufactured using a brown coloured material manufactured using kraft wood pulp. Presspahn gaskets have excellent physical and mechanical properties, generally used as electrical insulation.

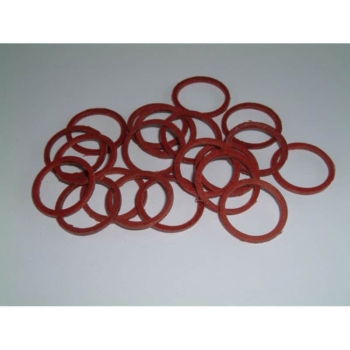

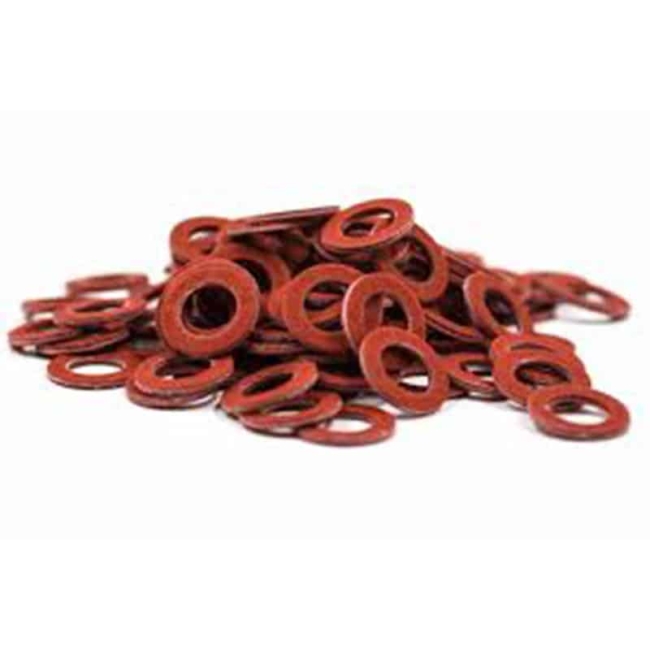

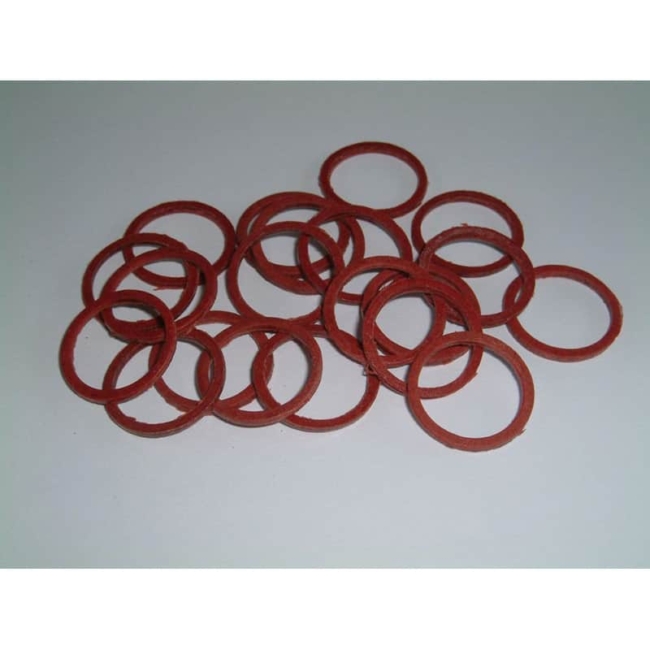

Vulcanised fibre material is laminated plastic composed of only cellulose, with great mechanical strength and conformability. Vulcanised Fibre washers can work in temperatures up to 110 ℃ anything more will result in the fibres burning or breaking down.



Benefits of using Fibre Jointing Washers

Advanced Seals & Gaskets Ltd offer fibre jointing washers in a range of materials, thicknesses, colours and finishes. When used correctly using the right type and grade of material,  fibre jointing washers will offer resistance to high temperatures, chemicals, oils, petrol, gas and even nuclear chemicals. Each material will provide insulation within certain applications and suitable for various levels of protection required, some available in variants that can offer additional or enhanced properties such as flame retardancy and higher chemical or temperature resistance for use in the most extreme environments.
