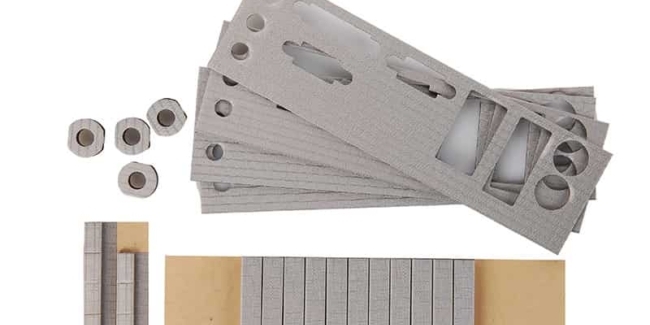

Conductive Fabric Gaskets

Here at Advanced Seals & Gaskets Limited, we maintain close relationships with a variety of suppliers. This allows us to offer our customers a wide choice of materials that can be tailored to meet their specific requirements. Among the products we offer is RFI/EMI/EMC Conductive Fabric Gaskets. RFI/EMI/EMC Conductive Fabric refers to a lightweight material such as Nylon, impregnated with conductive metals. This combination results in a material that combines the flexibility and breathability of a fabric with the electrical properties of a metal, allowing it to be used to shield complete rooms, cables and seals. In addition, RFI/EMI/EMC Conductive Fabric can be manufactured plain or with self-adhesive backings on one or both sides.

Whether we manufacture as a one-off or in large quantities, we work closely with our customers throughout the manufacturing process to provide a completely bespoke service. Utilizing state-of-the-art machinery and techniques such as die cutting and punching, and CNC-cutting, we produce top quality products that meet a wide range of specifications.

RFI/EMI/EMC Conductive Fabric is available from us in many forms including:



Product Enquiry

For information on Conductive Fabric Gaskets please complete the following quick enquiry or call us on +44(0)1384 252555.






    Product Specification & Key Characteristics:

    • Standard Thickness:  0.055mm
    • Colour: Grey, copper, silver, black
    • Temperature Range: -40°C to +85°C
    • Surface Resistance: ≤0.05 Ω/cm²
    • Shielding Effectiveness: 10MHZ - 82, 3GHZ - 68
    • Surface Resistivity: <0.06

    Full technical data can be supplied upon request,
    or downloaded from our online portal.

    Help and guidance

    If you would like to speak to a representative to discuss your specific application or requirements please call our sales office direct on 01384 469100, alternatively you can send an E-mail. Simply click on the link and forward us your details along with your question and we will contact you immediately.

    Samples - Technical Conductive Fabric Gaskets

    Samples can be submitted for testing upon request.

    Call now for sample requests or further help.

    Why use RFI/EMI/EMC Conductive Fabric Gaskets ?

    We offer conductor gaskets that come in many shapes and sizes to suit our customers' needs. Using RFI/EMI materials within electrical devices creates a shield that reduces interference risk.

    All electronic devices can generate electromagnetic or radio frequency interference. These interferences can cause disturbances within electronic devices, which may in turn affect the performance of the circuit within the device. Conductive fabric gaskets are made from conductive fabrics which shield electronic devices from electromagnetic interference (EMI) and radio frequency interference (RFI).

    These properties allow RFI/EMI/EMC Fabric Gaskets to be used in a range of applications, such as naval and marine systems, and enclosure covers. In addition, they provide thermal regulation, antibacterial and hypoallergenic properties.

    What is RFI/EMI/EMC Conductive Fabric?

    The term RFI/EMI/EMC material refers to a polyester or nylon fabric that can be nickel/copper or silver-plated to create a highly conductive material.

    An RFI/EMI/EMC material is designed to prevent electronic devices from being disturbed by RFI (radio frequency interference) and EMI (electromagnetic interference) as well as to insulate devices in order to minimize interference.

    Advanced Seals and Gaskets Ltd offer RFI/EMI/EMC materials in pre-cut parts or as complete rolls or sheets, allowing customers to cut their own products as and when needed.

    RFI/EMI/EMC Shielding Products Available

    Our relationships with our various suppliers and manufacturers ensure we can offer a wide selection of products at an affordable price while keeping lead times to a minimum. RFI/EMI/EMC shielding products available from us include:

    • Conductive Fabric:  A polyester or nylon fabric that can be nickel/copper or silver-plated to create a highly conductive material.  This fabric is wrapped around a sponge and formed into usable profiles such as our Conductive Fabric gaskets.
    • Conductive Silicone: Products produced using a silicone or fluorosilicone material that has been impregnated with electrically conductive particles prior to being cured.  Conductive Silicone gaskets not only provide EMI/RFI shielding but will also act as seals against dust and water.
    • Gap Pads: Also known as filler pads. They are made from a silicone polymer combined with a thermal substance such as ceramic and then cured.  Gap pad gaskets are used to fill uneven surfaces and air gaps which provide a thermal interface between heat sinks and electrical devices.
    • Knitted Mesh: This material is created by knitting or weaving wires such as aluminium, steel, Monel or tin-plated copper-clad steel in sections or specifically shaped gaskets.  This mesh can be used on its own or as a sleeve wrapped over a sponge such as neoprene, silicone or EPDM.
    • Oriented Wire: Manufactured using silicone sponge and solid variants, combined with wires embedded vertically into the polymer.  Oriented wire gaskets provide a high level of oil-resistant shielding as well as environmental protection.
    • Sil-Pad: Sil-Pad gaskets perform in a similar way to gap-pads but are more flexible and comfortable. The material is constructed to enhance performance and contains a variety of materials including fibreglass, silicone rubber, polyamide/polyester films and fillers.
    • T-flex: T-flex is a soft gap-filling interface pad composed of a silicone elastomer, boron nitride filler and reinforced with fibreglass. Tflex is a cost-effective gap filler thermal interface material with excellent thermal performance, it is used in applications such as cooling components, storage drives, heat pipes, and engine control units.
    • Tgon: This is manufactured in various grades and thicknesses using synthetic graphite.  Tgon gaskets are generally used for thermal transfer and conductivity as opposed to electrical isolation.
    • Tguard:  Produced using a glass fibre supported silicone elastomer with ceramic oxide filler, Tguard creates a thermally conductive and electrically insulating material.

    Benefits of using RFI/EMI/EMC Conductive Fabric Gaskets?

    • Moisture and dust protection
    • Excellent surface conductivity, shielding effectiveness and corrosion resistance
    • High temperature resistance
    • Available in various woven and non-woven polyester or nylon substrate configurations
    • Flexible
    • Anti-Allergy and Anti-Bacterial properties

    Advantages of using RFI/EMI/EMC Conductive Fabric Gaskets

    RFI/EMI/EMC Conductive Fabric Gaskets offer many advantages to customers by providing a seal covering gaps between conductive paths to ensure a smooth current flow.  They also prevent electromagnetic waves, both internal and external, from interfering with devices and circuits.

    In addition, RFI/EMI/EMC fabrics allow a number of electrical devices to operate correctly even in the presence of each other as the Radio Frequency Interference and Electromagnetic Interference levels are controlled. Conductive Fabric Gaskets are used in a variety of applications including wearable medical devices, notebook computers, plasma display panels, printers, and global positioning systems (GPS).
