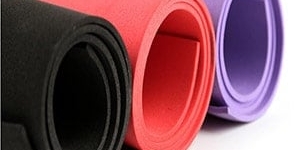

EVA 45KG Polyethylene Foam

EVA 45KG Polyethylene Foam

EVA 45KG Polyethylene Foam

Advanced Seals & Gaskets Ltd work with a multitude of reputable material manufacturers enabling us to offer materials in a choice of grades, densities and colours.  One of our popular materials are Polyethylene or PE foams, which includes EVA 45KG Polyethylene foam  or ‘EVA block foam’ as it is sometimes referred to. EVA 45kg Polyethylene foams are a cross linked material which look virtually identical to standard Polyethylene, however these EVA foams are stronger and more resilient due to the EV OR ethylene vinyl acetate content.

EVA 45kg Polyethylene foam is produced by a copolymerization reaction between vinyl acetate and ethylene, resulting in a versatile material which can be used as an alternative to other materials.  EVA 45kg Polyethylene is  manufactured and stocked in block or ‘bun’ form from which we can convert sheets and rolls at various thicknesses starting from as little as 1.5mm.  As we offer  in-house conversion and lamination services, we can not only split materials down, we can also laminate layers together to create very thick products or laminates using multiple materials and apply self adhesives or foil facings.  Our onsite facilities consists of a number of presses, log cutters, strippers, bandsaws and CNC machines from which we can produce a number of EVA Polyethylene 45kg foam products including gaskets, washers, strips, pads and fabrications.

Material Enquiry

For information on EVA 45KG Polyethylene Foam please complete the following quick enquiry or call us on +44(0)1384 252555.






    Characteristics of Polyethylene (45Kg) Foam

    • Colours:  Black & White available as standard - other colours can be manufactured to order
    • Density:  45kg
    • Block Size: 2m x  1m
    • Cell Structure: closed cell
    • Temperature Range: -40℃ - +80℃
    • Tensile Strength (approx): ≥ 500 kPa (45kg)
    • Elongation at Break:≥ 250 % (45kg)
    • Tear Resistance: ≥ 20 N/cm (45kg)

    Full technical data can be supplied upon request,
    or downloaded from our online portal.

    What is EVA 45KG Polyethylene Foam?

    EVA 45kg Polyethylene, like other polyethylene foams are manufactured in block or ‘bun’ form, in a range of densities and colours for use in different applications.   45KG EVA PE foam, which is part of the Thermoplastic foam family, has a small, uniform, closed-cell structure making the material  impermeable to liquid, gasses and particles, creating an effective seal.  The cross-linking process forms bonds between the polymer chains, creating the 3D structure and giving the material improved compression strength, compression set, thermal stability and tensile strength.  EVA 45kg Polyethylene is manufactured the same way as standard PE foams, but with the EV additive mixed into the compound creating a noticeable ‘rubbery/spongy’ feel and improved recovery of the material making it suitable for more demanding applications.

    Why use EVA 45KG Polyethylene Foam?

    EVA 45Kg Polyethylene foam is a soft, lightweight foam with a closed cell, uniform cell structure  which can be used to seal against liquid, gasses and particles,  which is not only denser that the 24Kg and 30Kg materials, but is also firmer and stronger with improved tear resistance and compression recovery thanks the EVA additive mixed into the raw compound.  Polyethylene 45kg foam has a number of desirable properties including resistance to wear and tear, Ozone, UV and a working temperature range of -60°C - +90°C.

    It also offers excellent mechanical characteristics including noise and vibration control and can be used for thermal insulation.  Although softer than some other PE foams, EVA 45KG Polyethylene  is more resilient and durable enabling it to absorb impact and pressure without deteriorating or tearing.

    Different Grades of Polyethylene Available

    Having a network of manufacturers and suppliers, allows ASG to offer a full range of polyethylene materials, many of which are readily available from stock for a quick turnaround.  Below is just a selection of some of our popular polyethylene material types we can offer:

    • Anti static
    • Ethafoam
    • EVA foam
    • EEV Foam
    • Flame retardant
    • Chemically cross linked
    • Plastazote (densities from 15kg to 70kg)
    • Stratocell

    Benefits of Using 45KG EVA Polyethylene Foam?

    • Lightweight, strong & durable
    • Good impact and shock absorbing properties
    • Water repellent and buoyant
    • Excellent chemical, solvent, grease and fluid resistance
    • Good thermal and acoustic insulation
    • Easy to cut, convert  & shape

    Advantages of using Polyethylene (45Kg) Foam

    Using EVA 45kg Polyethylene foam offers countless advantages and is highly utilised in numerous industries and applications,  Polyethylene foam is a man-made material, designed  to suit a range of requirements and is available in a choice of grades, densities and colours.  The PE closed cell structure  which can be used in sealing applications against liquid, gases and particles.  foam is a man-made material, designed  to suit a range of requirements offering features such as being odourless, lightweight, buoyant making 45kg EVA PE foams a popular choice  for the production of sealing and cushioning parts which require excellent recovery from repetitive impact and compression.

    Polyethylene EVA 45kg foam also has a number of desirable properties including resistance to wear and tear and a working temperature range of -60°C to +90°C.    It also offers excellent mechanical characteristics including noise and vibration control and can be used for thermal insulation. EVA  Polyethylene 45kg foam is aesthetically pleasing, with a nice texture which is easy to fabricate, laminated and cut into parts using a range of techniques and processes for use within the building and construction, HVAC, automotive and sports industries.

    Have a Question About EVA 45kg Polyethylene Foam?

    Please contact us using the form below or by calling us on +44(0)1384 252555.
