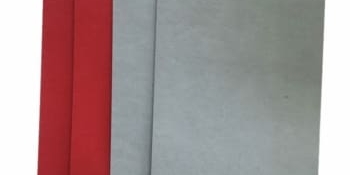

Fibre Jointing Millboard Pads

Betaflex Fibre Jointing Pads 350x350 (1)

Here at Advanced Seals & Gaskets Ltd, we supply fibre jointing millboard pads in a selection of sizes and thickness. Due to the product's versatile nature, fibre jointing millboard is used to manufacture a wide variety of products. Our fibre jointing millboard pads are generally made as squares, rectangles or circles; however, our automated machinery can produce a range of shapes with thicknesses ranging from 2mm to 10mm. Our fibre jointing millboard pads can be manufactured plain or with self-adhesive backings on one or both sides.

Whether we manufacture as a one-off or in large quantities, we work closely with our customers throughout the manufacturing process to provide a completely bespoke service. Utilising state-of-the-art machinery and techniques, we produce top quality products in house, meeting a wide range of customer specifications.


Fibre jointing millboard is available from us in many forms including:

  • Gaskets
  • Sheets
  • Strips

Product Enquiry

For information on Fibre Jointing Millboard Pads please complete the following quick enquiry or call us on +44(0)1384 252555.

    Product Specification & Key Characteristics

    • Colour: Anthracite
    • Density: <90KG/M³
    • Fire Propagation Index: <12
    • Operating Temperature: -30°C to 100ºC
    • Thickness: 1mm – 100mm (can be laminated for greater thickness)

    Full technical data can be supplied upon request,
    or downloaded from our online portal.

    What Is Fibre Jointing Millboard?

    Fibre jointing millboard, also known simply as millboard, is a type of non-asbestos, non-metallic, and non-flammable material used for gasket and sealing applications in various industries. It is typically made from a combination of cellulose fibres, fillers, and synthetic rubber or elastomers, which are compressed and bonded under high pressure and temperature to form a dense and durable sheet.


    Product Specification & Key Characteristics:

    • Standard Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm and 10mm
    • Size: 1000mm x 1000mm
    • Colour: Beige
    • Temperature range: certain grades reaching up to 450°C
    • Resistances: Heat and fire resistance, certain chemicals, fuel and oil

    Why use Fibre Jointing Millboard Pads?

    Fibre jointing millboard is a popular choice in a range of applications due to its unique combination of properties, such as high temperature resistance, reliable sealing capabilities, and insulation properties. As a versatile and durable material, fibre jointing millboard is often used in products such as pads and gaskets that are used in a variety of industrial settings, where a robust, high-temperature-resistant, and cost-effective sealing solution is required.

    Benefits of using Fibre Jointing Millboard?

    • High Temperature Resistance: Millboard is designed to withstand high temperatures, making it suitable for use in applications where sealing and gasket materials are exposed to heat.
    • Excellent Compressibility: The fibrous nature of millboard allows it to conform and seal effectively against irregular or uneven surfaces.
    • Good Mechanical Strength: Millboard has decent mechanical strength, allowing it to resist compression and maintain its integrity under pressure.
    • Electrical Insulation: It provides electrical insulation properties, making it useful in electrical equipment and applications.
    • Chemical Resistance: Millboard can offer resistance against various chemicals, depending on the specific formulation.
    • Low Thermal Conductivity: It exhibits low thermal conductivity, which helps prevent heat transfer and energy loss.
    • Easy to Cut and Shape: Millboard is relatively easy to cut, shape, and form into gaskets of various sizes and designs.
    • Non-Asbestos: It is a non-asbestos material, which makes it safer to use compared to some older gasket materials that contained asbestos

    Advantages of using Fibre Jointing Millboard Pads

    Fibre jointing millboard pads offer several advantages for customers including their high temperature resistance, compressibility and good mechanical strength. Fibre jointing millboard is commonly used for sealing pipe flanges, valve covers, boilers, furnaces, ovens, and other equipment or machinery where a reliable, heat-resistant, and compressible gasket material is required. In addition, our fibre jointing millboard products are extremely cost effective due to their durability and long shelf life if maintained correctly.

    Different Grades of Fibre Jointing Materials

    Here at Advanced Seals & Gaskets Ltd, we work closely with a network of suppliers and manufacturers to ensure we offer a wide variety of products while keeping lead-times to a minimum. Fibre jointing materials available from us include:

    Betaflex is a cellulose-based fibre material, made using a nitrile binder giving it excellent tensile strength, low compressibility, good elastic recovery and erosion resistance. Betaflex is used widely in the industrial and automotive sectors due to its resistance to oils. petrol, diesel and even antifreeze.

    Ceramic Fibre material is constructed using ceramic fibres and an organic binder. Designed for extreme temperature applications reaching up to 1250℃, ceramic fibre rolls offer excellent strength and thermal resistance.

    Gasket Paper has a high resistance to petrol, oil and water, and is therefore often utilised within automotive applications.
