SRBF Electrical Insulation

By sourcing materials from across the world,  Advanced Seals & Gaskets Ltd are able to offer a wide selection of products for use in specialist sealing and gasketing applications.  One such group of products offered from our vast catalogue are various types of electrical insulation materials, with one type being Synthetic Resin Bonded Fibre, sometimes also called SRBF, Synthetic Resin Bonded Fabrics or fabric based laminates.

SRBF is available in a wide range of thicknesses including 0.8mm, 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm and 20mm with a sheet size of 1220mm x 1220mm. SRBF can be supplied in both a medium weave and fine weave depending upon the customer's requirement and application.

Our onsite conversion facilities which consists of various presses, slitters, bandsaws and oscillating knife, allows us to take SRBF sheets of materials and convert them into finished parts including pads, washers, gaskets or strips - all of which can be supplied laminated with a choice of our many self-adhesives.

Material Enquiry

For information on SRBF Electrical Insulation please complete the following quick enquiry or call us on +44(0)1384 252555.

    Key Characteristics of Using SRBF

    • Colour: Brown
    • Sheet Size: 1220 x 1200
    • Available Thicknesses: 0.8mm to 20mm
    • Temperature: up to +115°C continuous
    • Standards met:
    • BS EN 60893 Standard:3-4-PFCC305
    • BS EN 60893 Standard: 3-4-PFCC203
    • BS EN 60893 Standard: 3-4-PFCC201

    Full technical data can be supplied upon request,
    or downloaded from our online portal.

    Help and guidance

    If you would like to speak to a representative to discuss your specific application or requirements please call our sales office direct on 01384 469100, alternatively you can send an E-mail. Simply click on the link and forward us your details along with your question and we will contact you immediately.

    Samples - Technical SRBF Electrical Insulation

    Samples can be submitted for testing upon request.

    Call now for sample requests or further help.

    What is SRBF Electrical Insulation?

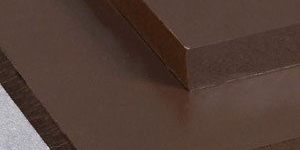

    Synthetic Resin Bonded Fibre (SRBF) is a brown coloured ‘phenolic’ sheet material, made up using layers, in this case of cotton cloth (but can also be paper or glass fibre) which is placed into a resin or varnish and bound together using heat and pressure to create a high strength electrically insulating material.

    Why use SRBF Electrical Insulation?

    SRBF is recognised for its excellent wear resistance and electrical insulation properties, they are also rigid, lightweight and wear resistant.  SRBF is dimensionally stable therefore suitable for low voltage and abrasive applications and can be easily machined into washers and pads or intricately cut parts for use as fine tooth gears, bearings and jigs in low or medium voltage applications.

    Electrical insulation materials such as SRBF are used to create a barrier restricting the flow of electrical current, protecting electrical conductors from coming into contact with people or tools during installation, repairs or when an electrical appliance or device is being used.  Electrical insulation materials also prevent electrical arcing (electrical current flows through the air between two conductors, as a result of the electrical breakdown of gas that produces an ongoing electrical discharge) and are used in other electrical insulation applications.

    The Benefits of using SRBF Electrical Insulation

    • Offers enhanced machinability
    • Low creep, dimensionally stable, wear resistance, low water absorption
    • Excellent electrical insulating properties and chemical resistance
    • Operating Temperature  up to +115°C continuous
    • Resistance to corrosion effects and low moisture resistance
    • Multiple grades available

    Grades of SRBF Available

    SRBF Fine Weave (smooth) -  manufactured to meet- BS EN 60893 Standard: 3-4-PFCC305.  This smooth grade material offers excellent chemical resistance, electrical insulation and many other mechanical properties, suitable for intricately cut/machined components.

    SRBF Fine Weave (coarse) - manufactured to meet BS EN 60893 Standard: 3-4-PFCC203, with every similar properties to the smooth grade but due to the texture isn't suited for intricate machining.

    SRBF Medium Weave - manufactured to BS EN 60893 Standard: 3-4-PFCC201, is a great general purpose fabric material, offering high strength, wear resistance and low voltage electrical insulation.

    SRBF (commercial) - is a more affordable alternative to the medium weave, manufactured to meet BS EN 60893 Standard: 3-4-PFCC203.

    Advantages of Using SRBF Electrical Insulation

    Synthetic Resin Bonded Fibre (SRBF) offers a number of advantages, many of which are similar to SRBP, but with better load bearing capabilities in comparison.  SRBF is used in applications where a dimensionally stable, impact resistant and rigid material is required for use in abrasive and low voltage applications.

    In comparison to plastics, it also offers low creep and corrosive resistant properties. SRBF materials and products as with other electrical insulation materials serve an important purpose and that is to safely insulate electrical devices, machinery and appliances which would otherwise be a fire or electric shock hazard.

    This material is available in a range of thicknesses from 0.8mm up to 20mm, all of which can be machined into intricate and complex shapes for use as fine toothed gears, seals, geneva wheels, bearings, gears and jigs, etc. and used in wide range of high temperature applications, including in the automotive, electrical, white goods, lighting and energy markets.
