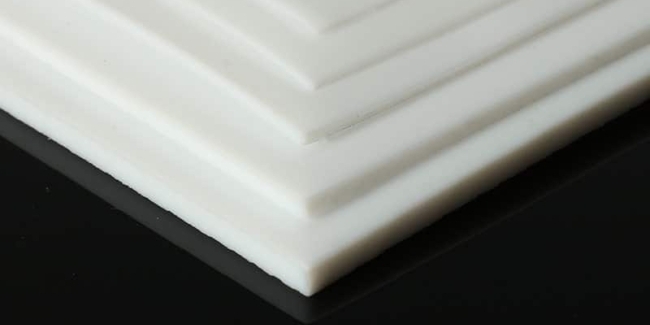

PTFE Plastic Sheet

Plastic sheets are available in numerous grades, colours and thicknesses, many of which are supplied by ASG, sourced from a network of plastic material manufacturers and suppliers.  One of the hundreds of plastics sheets include PTFE plastics or ‘Polytetrafluoroethylene’, sometimes also referred to as Teflon.

PTFE is a very versatile material that is manufactured in sheets of between 0.25 and 100mm thick,  in sheet sizes of up to 1500mm x 1500mm (depending on thickness).  Using one of our many on-site saws, presses or oscillating knife, we are able to convert PTFE plastic sheets into bespoke components such as pads, washers, strips and gaskets, all of which can be supplied plain or coated in a choice of self-adhesives or foils.

Ptfe Plastic Sheet

Product Enquiry

For information on PTFE Plastic Sheet please complete the following quick enquiry or call us on +44(0)1384 252555.






    Product Specification & Key Characteristics

    Colour: Natural/ white

    Temperature range : -200+260°C (short-term up to 300°C)

    Sheet Thickness: 0.25mm - 100mm (and in roll or tube form)

    Resistances: chemicals, weathering, wear, electrically insulating, gamma radiation, UV

    Flammability: class UL94 V-0 flammability rating (will self-extinguish after removal of flame)

    FDA: complies with food standard regulations 21 CFR 177.1550 and FDA 21 CFR 175.300

    Full technical data can be supplied upon request,
    or downloaded from our online portal.

    Help and guidance

    If you would like to speak to a representative to discuss your specific application or requirements please call our sales office direct on 01384 469100, alternatively you can send an E-mail. Simply click on the link and forward us your details along with your question and we will contact you immediately.

    Samples - Technical PTFE Plastic Sheet

    Samples can be submitted for testing upon request.

    Call now for sample requests or further help.

    What are PTFE plastic sheets?

    Plastic sheets can be made using PTFE or Polytetrafluoroethylene, which is a fluorocarbon material - consisting of only carbon and fluorine, natural coloured as standard, however other colours can be made to order.  PTFE fluorocarbons are solid at room temperature, hydrophobic and non-stick.  PTFE sheets in ‘Virgin grade’ in comparison to other plastics have a low mechanical strength, however this can be improved or reinforced with the inclusion of additives such as glass fibre or carbon during the manufacturing process.  PTFE plastic sheets are large pieces of material, which can be used to convert into smaller components, or used in full for large surface coverings.

    Why use PTFE plastic sheets?

    PTFE plastic sheets are manufactured using a formulation that offers  many excellent properties and unique characteristics, which include high thermal stability, chemical resistance and an extremely wide operating temperature range of -240 to +260°C.  PTFE plastic sheets offer chemical inertness (with the exception of elemental alkali metals, chlorine trifluoride and elemental fluorine at high temperatures and pressures), ozone, flame  resistance and  an extremely low coefficient of friction meaning few materials stick to it without sufficient preparation.  PTFE plastic is soft and formable, with good bearing and wear properties, and high dielectric strength.

    Advantages of using PTFE plastic sheet

    PTFE or Polytetrafluoroethylene sheets offer users a number of advantages meaning it is suited for use in many applications and industries.  These sheets offers low friction, meaning moving parts will easily slide, causing less heat and wear, this slippy non-stick material is also easy to keep clean and dirt and dust will not stick to its surface.  PTFE plastic sheets are non-flammable, this is due not only to its very low friction, but also its ability to withstand very high heat and its extremely high melting point.

    PTFE offers great chemical resistance, and is extremely durable when exposed to weathering, combined with the great electrical properties it is ideal for use in most industries.  PTFE plastic sheets are manufactured in a range of standard thicknesses which can be converted into a range of finished components and found utilised in a number of industries and applications including seals and fittings in chemical plants, food and  pharmaceuticals.  Due to being non-corrosive, this material can also be used to make containers ands, useful in laboratories where highly corrosive chemicals are handled, and also for cutting into gaskets, and circuit board components due to it’s electrical insulation and heat resistance properties.

    Other types of plastic available

    Advanced Seals & Gaskets work with a multitude of material manufacturers and suppliers, giving our customers more choice of plastic sheeting - our most popular materials being:



      • PVC
      • Polycarbonate
      • Polypropylene
      • HIPS (High Impact Polystyrene)
      • ABS
      • Polyester
      • Acetal
      • Acrylic
      • Nylatron

    Benefits of using PTFE plastic

    • Excellent temp range -200+260°C (short-term up to 300°C)
    • high resistance to many chemicals and solvents
    • high dielectric properties
    • low friction coefficient (create a slippery surface)
    • Non-toxic
    • Flame resistance
