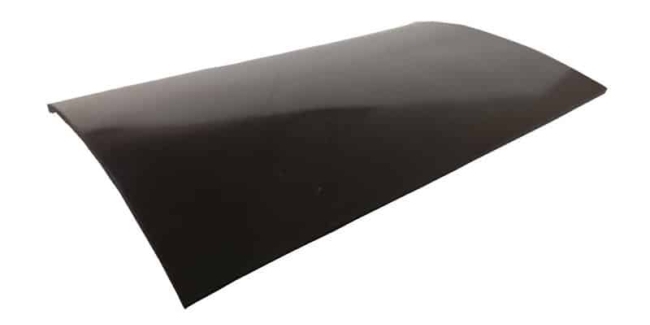

Viton Sponge Sheet

Advanced Seals & Gaskets produce high-quality sheets in a diverse range of materials, some of which are designed for unique industries and applications, one such material is Viton sponge, which has been specially formulated to resist extreme temperatures ranging between -25°C to +204°C, and a vast number of chemicals, liquids and acids.

Viton sponge sheets are manufactured in a roll form with thicknesses starting at  3.18mm, which ASG convert into various other products including sheets, supplied with a plain or self-adhesive finish using our in-house laminating service.

Viton sponge is often taken in roll or sheet form as they give the customers and end-users the flexibility to cover larger surface areas and to be able to cut their own strips/gaskets/washers/pads out as and when they are required. Viton sponge sheets can be used in applications such as gap filling, sealing and acoustic dampening.

What are Viton Sponge Sheets?

Viton sponge is one of many closed-cell materials on offer from Advanced Seals & Gaskets, which is used where a high-performance sponge is required for extreme environments. The material is manufactured in roll form, in thicknesses ranging from 3.18mm to 19.05mm, with skin on both faces, designed to improve tear resistance.

Rolls are sometimes preferred by customers as they have the freedom to cut their own sheets down into sizes of their choice as and when required. Viton sponge sheets can be manufactured with a choice of finishes including foils, self-adhesives or other materials.

Viton Sponge Sheet

Product Enquiry

For information on Viton Sponge Sheet please complete the following quick enquiry or call us on +44(0)1384 252555.






    Product Specification & Key Characteristics

    • Colour: Black
    • Density: 10Lb/Ft³ - 19Lb/Ft³  (varies depending on thickness)
    • Temperature Range: -20ºc to +210ºc
    • Manufactured Thickness: 3.18mm - 19.05mm (can be split down or laminated to achieve greater thicknesses)

    Full technical data can be supplied upon request,
    or downloaded from our online portal.

    Help and guidance

    If you would like to speak to a representative to discuss your specific application or requirements please call our sales office direct on 01384 469100, alternatively you can send an E-mail. Simply click on the link and forward us your details along with your question and we will contact you immediately.

    Samples - Technical Viton Sponge Sheet

    Samples can be submitted for testing upon request.

    Call now for sample requests or further help.

    Sheets

    ASG supply sheets in a wide array of materials such as EPDM, neoprene, rubber, plastic, polyethene, polyether and polyurethane and many more. We cut our sheets in house using our state of the art machinery,  allowing us to work closely with our customers to provide sheets in the desired specifications such as width, thickness and length.  Get in touch for more information on our range of sheeting

    Why use Viton Sponge Sheets?

    Viton sponge sheets have a vast number of highly desirable resistance and mechanical properties, making them the number one choice for sealing, gaskets and insulating application in harsh environments.

    Not only is Viton sponge tear resistant due to its skin finish, but it also has a wide working temperature range of  -20°C to +210°C and is resistant to chemicals, fuel, ozone, weather, lubricants, animal/vegetable oils and hydrocarbons.

    These properties mean this material can be used for high temperature sealing such as within engine bays and other automotive applications, but also in applications requiring acoustic and vibration dampening in construction and resistance to oils, acids and other chemicals.

    Benefits of Viton Sponge Sheets

    • Environmental resistance (ozone/weather0
    • High Chemical Resistance
    • Weather & hot water-resistant
    • High-Temperature Range
    • Fuel, oil, lubricant resistance
    • Withstand Challenging Environments

    The Advantages of Using Viton Sponge Sheets

    There are many advantages to using Viton sponge sheets as the material is a high performance, versatile and durable, with increased strength from the skins, providing tear and puncture resistance.  Being a closed cell sponge, even without the skins, the material will not allow the ingress of air or fluid into its cell structure.

    Viton sponge sheets are available in a range of standard pre-manufactured thicknesses, which can be used to convert into a number of other products such as gaskets, strips, rolls, washers and many more.  Viton sponge sheets can be split down or laminated to achieve non-standard thicknesses where required.
